As industrial automation continues to evolve, traditional manual dispensing methods are increasingly unable to meet the demands for efficiency, consistency, and quality in modern manufacturing. To address these challenges, the3-axis automatic dispensing machinehas become an ideal solution for applications across electronics, LED, new energy, automotive, and medical device industries.

This article provides a comprehensive overview of the features, structural design, control system, and application scenarios of 3-axis dispensing machines, offering a clear understanding of how this mature and reliable equipment works.

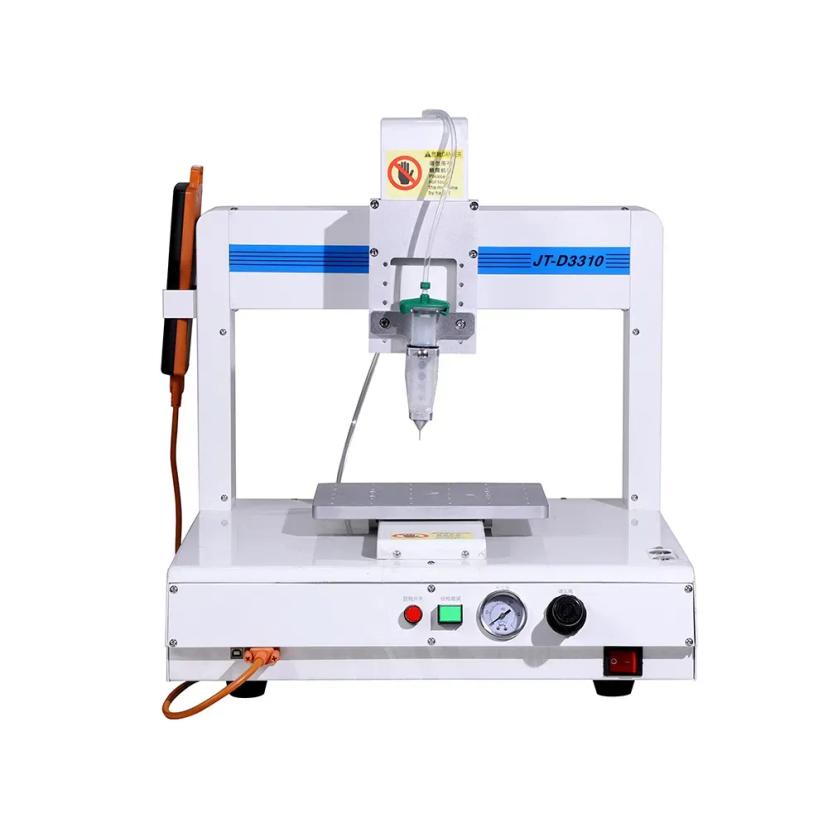

What Is a 3-Axis Automatic Dispensing Machine?

A 3-axis dispensing machine is a device that automates adhesive application in three-dimensional space along the X, Y, and Z axes. Unlike manual operations, it offers high-speed, programmable, and repeatable performance for a wide variety of dispensing tasks.

Key components include:

• XYZ motion platform

• Control system (PC-based or embedded)

• Dispensing valves (needle, jet, screw, etc.)

• User interface (touchscreen or teaching pendant)

• Optional modules: vision alignment, heating, R-axis rotation

Key Features and Advantages

1. Replaces Manual Labor for Consistent Dispensing

The machine automates precise control over volume, path, and speed of glue output. It ensures consistent and repeatable operations, suitable for both simple and complex dispensing tasks.

For example, in speaker assembly for smartphones, the machine can accurately dispense adhesive at each mounting point, increasing production efficiency by 3–5 times compared to manual methods.

2. User-Friendly Operation and Fast Setup

Equipped with adual-language interface (Chinese/English), the machine is intuitive and easy to use.
Dispensing programs can be created via:

• Teaching mode (manual guidance)

• Coordinate input and graphical programming

• USB program upload/download (convenient for data management and machine sharing)

No external PC is required; the machine runs independently, making it ideal for space-limited or semi-automated production environments.

3. Built-In Needle Control—No External Pendant Required

Unlike other machines that require external pendants, this model featureson-machine needle control buttons, allowing for quick path setup and debugging directly from the unit. This simplifies commissioning and shortens production changeover time.

4. High-Rigidity CNC-Machined Structure

The machine frame is made usinghigh-precision CNC integrated processing, ensuring accurate vertical alignment of all axes and superior rigidity.

Benefits include:

• Reduced vibration and deformation

• Long-term structural stability

• Industrial-grade corrosion resistance and cleanroom compatibility

Additionally, it features anultra-quiet design, reducing ambient noise during operation and improving workplace comfort.

5. Graphical Teaching Pendant for Intuitive Programming

A graphical teaching pendant (optional or built-in) enables easy path setup with icon-based functions. Operators can program complex paths quickly, including:

• Manual coordinate teaching

• Matrix duplication

• Offset adjustments

• Program import/export across machines

This design is particularly useful for flexible manufacturing and frequent product changeovers, such as camera modules, automotive components, or flexible PCBs.

6. True 3-Axis Arc Interpolation for 3D Path Dispensing

Equipped with an advancedPC-based motion controller, the machine supportsPTP (Point-to-Point), CP (Continuous Path), and full 3-axis arc interpolation, enabling non-planar, 3D dispensing.

Applicable to:

• Curved surface applications (e.g., smartwatches)

• Irregular border sealing

• Inclined or stepped surfaces

For products requiring 3D trajectory dispensing, this function enhances quality and operational flexibility.

7. Compatible with a Wide Range of Adhesives

This machine can handle a variety of adhesive types and processes, including:

Supported dispensing modes include dotting, line drawing, circular paths, matrix layouts, height-tracking, and more—meeting a wide variety of process needs.

Application Scenarios

📌 Smartphone Camera Modules:UV or silver glue for precise mounting, vision-assisted positioning
📌 Automotive Dashboards:Structural sealing using AB glue across multi-point paths
📌 Medical Syringe Assembly:Instant adhesive application along curved or sloped surfaces
📌 COB Black Glue Encapsulation:Seamless sealing with programmable path control

Conclusion: Why Choose a 3-Axis Dispensing Machine?

The 3-axis automatic dispensing machine offers an ideal balance ofcost, versatility, and performance. Its core advantages include:

• Wide application across multiple industries

• Easy to use and maintain, even for non-experts

• Robust construction with long-term stability

• Flexible programming and advanced path control

• Lower upfront investment, fast return on automation

For small to medium-sized factories, OEM production, or R&D workshops, a 3-axis dispenser is an essential upgrade toward smart manufacturing.
